Like many, I also jumped on-board and got one of Oracle Cloud’s Ampere A1 flex instances a while ago. The ability to split it up into e.g. 4 machines at no cost is pretty amazing, even if you hate Oracle. I used one machine standalone, while my other 3 formed a Kubernetes cluster, which might become a topic for another blog entry in the future. Anyway I’ll skip out on how to setup your cloud instance and how to setup Wireguard. There are already a million guides out there for either topic.
The setup

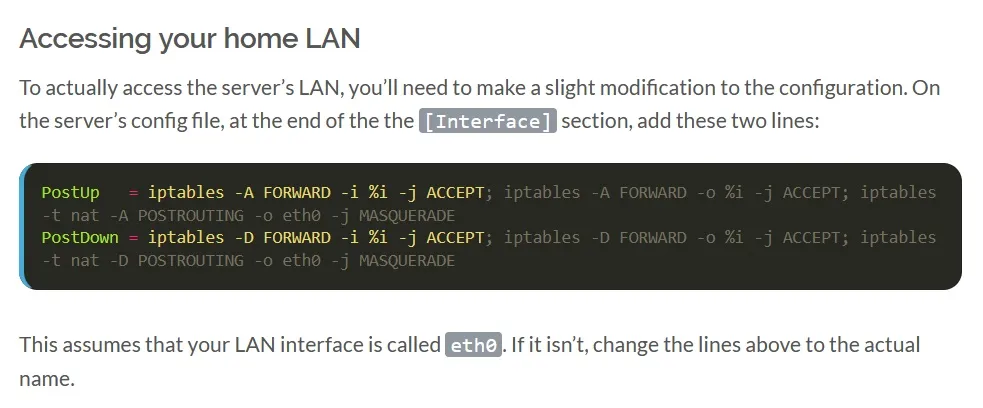

So essentially I had my client PC in my home network and I had a cloud machine that will serve as the VPN server. Said cloud machine also got a public (static) IPv4. Since it’s been a while since I used Wireguard the last time I followed this blog entry, which helped me a lot to get everything working. I also set the “PostUp” and “PostDown” as they described:
To test my connection I ran curl ifconfig.me to see if the public IP I got in the reply matched the IP of my home connection, or the public IPv4 from Oracle. But when I ran it on my client I saw that I just got a timeout, which confused me greatly. My server config looked like this:
[Interface]
Address = 192.168.2.1
PrivateKey = <server private key>
ListenPort = 51820
PostUp = iptables -A FORWARD -i %i -j ACCEPT; iptables -A FORWARD -o %i -j ACCEPT; iptables -t nat -A POSTROUTING -o enp0s6 -j MASQUERADE
PostDown = iptables -D FORWARD -i %i -j ACCEPT; iptables -D FORWARD -o %i -j ACCEPT; iptables -t nat -D POSTROUTING -o enp0s6 -j MASQUERADE
[Peer]
PublicKey = <client public key>
AllowedIPs = 192.168.2.2/32Like the blog entry told me. I also made sure to run sysctl -w net.ipv4.ip_forward=1 in order forward my IPv4 traffic. Next I tried to figure out if my client even reached my server. For that I ran watch iptables -L INPUT -nvx and turned the wg interface off and on again on the client side. I saw the following:
Chain INPUT (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
1862709 154764002 ACCEPT all -- * * 0.0.0.0/0 0.0.0.0/0 state RELATED,ESTABLISHED
1 576 ACCEPT icmp -- * * 0.0.0.0/0 0.0.0.0/0
910 74058 ACCEPT all -- lo * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT udp -- * * 0.0.0.0/0 0.0.0.0/0 udp spt:123
13606 811557 ACCEPT tcp -- * * 0.0.0.0/0 0.0.0.0/0 state NEW tcp dpt:22
9 1352 ACCEPT udp -- * * 0.0.0.0/0 0.0.0.0/0 state NEW udp dpt:51820
714 85461 REJECT all -- * * 0.0.0.0/0 0.0.0.0/0 reject-with icmp-host-prohibitedSo I got 9 connection attempts at least, which told me it at least reached my server. So next I checked my iptables FORWARD rules via watch iptables -L FORWARD -nvx and immediately saw my mistake:
Chain FORWARD (policy DROP 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
68 6195 DOCKER-USER all -- * * 0.0.0.0/0 0.0.0.0/0
68 6195 DOCKER-ISOLATION-STAGE-1 all -- * * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- * docker0 0.0.0.0/0 0.0.0.0/0 ctstate RELATED,ESTABLISHED
0 0 DOCKER all -- * docker0 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- docker0 !docker0 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- docker0 docker0 0.0.0.0/0 0.0.0.0/0
0 0 REJECT all -- * * 0.0.0.0/0 0.0.0.0/0 reject-with icmp-host-prohibited
0 0 ACCEPT all -- * wg0 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- wg0 * 0.0.0.0/0 0.0.0.0/0 The “PostUp” and “PostDown” were written with -A so they got appended after the “drop all” rule that Oracle has by default. Facepaw.
Once I saw that I changed the wg0.conf like this:
[Interface]
Address = 192.168.2.1
PrivateKey = <server private key>
ListenPort = 51820
PostUp = iptables -I FORWARD 6 -i %i -j ACCEPT; iptables -I FORWARD 6 -o %i -j ACCEPT; iptables -t nat -A POSTROUTING -o enp0s6 -j MASQUERADE
PostDown = iptables -D FORWARD -i %i -j ACCEPT; iptables -D FORWARD -o %i -j ACCEPT; iptables -t nat -D POSTROUTING -o enp0s6 -j MASQUERADE
[Peer]
PublicKey = <client public key>
AllowedIPs = 192.168.2.2/32to insert the rule at position #6 instead of appending it. Which changed my FORWARD chain to:
Chain FORWARD (policy DROP 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
68 6195 DOCKER-USER all -- * * 0.0.0.0/0 0.0.0.0/0
68 6195 DOCKER-ISOLATION-STAGE-1 all -- * * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- * docker0 0.0.0.0/0 0.0.0.0/0 ctstate RELATED,ESTABLISHED
0 0 DOCKER all -- * docker0 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- docker0 !docker0 0.0.0.0/0 0.0.0.0/0
16 1592 ACCEPT all -- * wg0 0.0.0.0/0 0.0.0.0/0
24 1576 ACCEPT all -- wg0 * 0.0.0.0/0 0.0.0.0/0
0 0 ACCEPT all -- docker0 docker0 0.0.0.0/0 0.0.0.0/0
0 0 REJECT all -- * * 0.0.0.0/0 0.0.0.0/0 reject-with icmp-host-prohibitedAnd it worked! Morale of the story: always be aware of how (stupidly) restrictive Oracle’s compute instances are by default :‘3.
